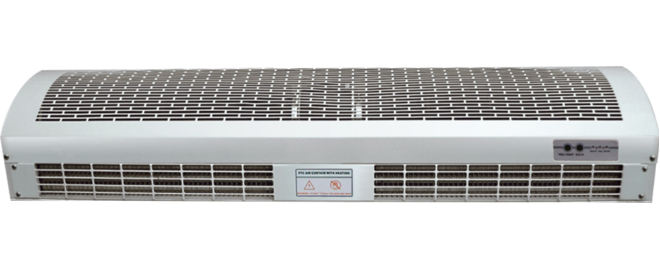

PTC double heating air curtain
PTC double heating air curtain
Detail:
PTC HEATING AIR CURTAIN - DOUBLE HEATING
NORMAL & HEATING AIR
Durable powder coated metal casing
Hi efficiency, Low noise, Dia.120mm blower
Microprocessor button control & Remote handset
Finger guard air outlet
double heating setting
Safety Ceramic Heater with Auto & Manual switches
Workable at -18 environmental temperature
Auto 3 min. shut off delay protection (heating)
Applicable installation height: 3.0m
Selectable unit width: 0.9,1.0,1.2,1.5,1.8,2.0m
Specification:
| Model | Installation Height |
Unit Width |
Power Supply |
Ceramic heater | Motor Power (H) |
Outlet temp. |
Outlet air speed |
Air flow (H) |
Noise (H) |
Unit Dimension (W * H * D) | |||
| Power | Phase Cur. | ||||||||||||
| L | H | L | H | ||||||||||
| (Mono speed/Dual heaters) | m | m | V/Ph/Hz | KW | A | W | ℃ | m/s | m3/h | dB(A) | mm | ||
| RM12509-D/Y-B-1-S | 2.3-3.0 | 900 | 220-240 /1 /50 |
4.0 | 6.0 | 18 | 27 | 156 | 50-60 | 7.0~ 7.5 |
912 | 55 | 900 * 221 * 183 |
| RM12509-D/Y-B-1-L | |||||||||||||
| RM12510-D/Y-B-1-S | 1000 | 4.0 | 6.0 | 18 | 27 | 167 | 1040 | 56 | 1000 * 221 * 183 | ||||
| RM12510-D/Y-B-1-L | |||||||||||||
| RM12512-D/Y-B-1-S | 1200 | 4.8 | 7.2 | 22 | 33 | 178 | 1280 | 57 | 1200 * 221 * 183 | ||||
| RM12512-D/Y-B-1-L | |||||||||||||
| RM12515-D/Y-B-1-S | 1500 | 6.0 | 9.0 | 27 | 41 | 207 | 1670 | 59 | 1500 * 221 * 183 | ||||
| RM12515-D/Y-B-1-L | |||||||||||||
| RM12518-D/Y-B-1-S | 1800 | 8.0 | 12.0 | 36 | 55 | 200 | 2000 | 60 | 1800 * 221 * 183 | ||||
| RM12518-D/Y-B-1-L | |||||||||||||
| RM12520-D/Y-B-1-S | 2000 | 8.0 | 12.0 | 36 | 55 | 300 | 2110 | 62 | 2000 * 221 * 183 | ||||
| RM12520-D/Y-B-1-L | |||||||||||||
| RM12509-3D/Y-B-1-S | 900 | 380-400 /3 /50 |
4.0 | 6.0 | 4.5 | 9 | 156 | 912 | 55 | 900 * 221 * 183 | |||
| RM12509-3D/Y-B-1-L | |||||||||||||
| RM12510-3D/Y-B-1-S | 1000 | 4.0 | 6.0 | 4.5 | 9 | 167 | 1040 | 56 | 1000 * 221 * 183 | ||||
| RM12500-3D/Y-B-1-L | |||||||||||||
| RM12512-3D/Y-B-1-S | 1200 | 4.8 | 7.2 | 5.5 | 11 | 178 | 1280 | 57 | 1200 * 221 * 183 | ||||
| RM12512-3D/Y-B-1-L | |||||||||||||
| RM12515-3D/Y-B-1-S | 1500 | 6.0 | 9.0 | 6.8 | 14 | 207 | 1670 | 59 | 1500 * 221 * 183 | ||||
| RM12515-3D/Y-B-1-L | |||||||||||||
| RM12518-3D/Y-B-1-S | 1800 | 8.0 | 12.0 | 9 | 18 | 200 | 2000 | 60 | 1800 * 221 * 183 | ||||
| RM12518-3D/Y-B-1-L | |||||||||||||
| RM12520-3D/Y-B-1-S | 2000 | 8.0 | 12.0 | 9 | 18 | 300 | 2110 | 62 | 2000 * 221 * 183 | ||||
| RM12520-3D/Y-B-1-L | |||||||||||||
