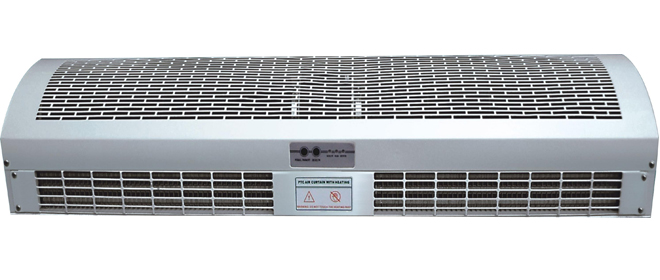

    PTC HEATING AIR CURTAIN - DOUBLE AIR SPEEDS

    NORMAL & HEATING AIR



    Durable powder coated metal casing
    Hi efficiency, Low noise, Dia.120mm blower
    Microprocessor button control & Remote handset
    Finger guard air outlet
    double speeds motor optional
    Safety Ceramic Heater with Auto & Manual switches
    Workable at -18 environmental temperature
    Auto 3 min. shut off delay protection (heating)
    Applicable installation height: 3.0m
    Selectable unit width: 0.9,1.0,1.2,1.5,1.8,2.0m



    Specification:



    Model Installation
    Height    		 Unit
    Width    		 Power
    Supply    		 Ceramic heater Motor
    Power
    (H)    		 Outlet
    temp.    		 Outlet
    air speed    		 Air flow
    (H)    		 Noise
    (H)    		 Unit Dimension
    (W * H * D)
    Power Phase
    Current
    H L
    (Dual speeds/Mono heater)  m m V/Ph/Hz KW A W ℃ m/s m3/h dB(A) mm
    RM12509-D/Y-B-2-S 2.3-3.0 900 220-240
    /1
    /50    		 6.0 27 156 50-60 7.5 6.0 912 55 900 * 221 * 183
    RM12509-D/Y-B-2-L
    RM12510-D/Y-B-2-S 1000 6.0 27 167 1040 56 1000 * 221 * 183
    RM12510-D/Y-B-2-L
    RM12512-D/Y-B-2-S 1200 7.2 33 178 1280 57 1200 * 221 * 183
    RM12512-D/Y-B-2-L
    RM12515-D/Y-B-2-S 1500 9.0 41 207 1670 59 1500 * 221 * 183
    RM12515-D/Y-B-2-L
    RM12518-D/Y-B-2-S 1800 1.2 55 200 2000 60 1800 * 221 * 183
    RM12518-D/Y-B-2-L
    RM12520-D/Y-B-2-S 2000 1.2 55 300 2110 62 2000 * 221 * 183
    RM12520-D/Y-B-2-L
    RM12509-3D/Y-B-2-S 900 380-400
    /3
    /50    		 6.0 9 156 912 55 900 * 221 * 183
    RM12509-3D/Y-B-2-L
    RM12510-3D/Y-B-2-S 1000 6.0 9 167 1040 56 1000 * 221 * 183
    RM12500-3D/Y-B-2-L
    RM12512-3D/Y-B-2-S 1200 7.2 11 178 1280 57 1200 * 221 * 183
    RM12512-3D/Y-B-2-L
    RM12515-3D/Y-B-2-S 1500 9.0 14 207 1670 59 1500 * 221 * 183
    RM12515-3D/Y-B-2-L
    RM12518-3D/Y-B-2-S 1800 1.2 18 200 2000 60 1800 * 221 * 183
    RM12518-3D/Y-B-2-L
    RM12520-3D/Y-B-2-S 2000 1.2 18 300 2110 62 2000 * 221 * 183
    RM12520-3D/Y-B-2-L
