PTC heating air curtain vertical double air speed
PTC heating air curtain vertical double air speed
Detail:

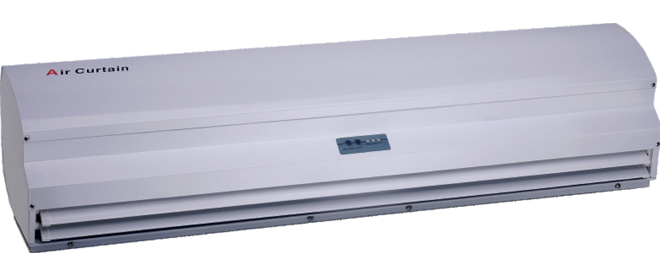

PTC HEATING AIR CURTAIN - VRTICAL DOUBLE AIR SPEEDS
NORMAL & HEATING AIR
The vertical air intake design help to decrease the noise and the dust on the front side panel.
The high and low air spee settings meet the need of mltiple applications as well as energy-saving.
The un-electrified-surface heater ensures safer operation fast temperture rising and auto-temperature-control performance for users.
Electronic control, eitherambient air or heating air mode can be selected.
Selectable unit width: 0.9,1.0,1.2,1.5m
Specification:
| Model | Installation Height | Unit Width |
Power Supply |
Ceramic Heater | Motor Power (H) |
Outlet temp. |
Outlet air speed |
Air flow (H) |
Noise (H) |
Unit Dimension (W * H * D) | ||
| Power | Current | H | L | |||||||||
| m | mm | V/Ph/Hz | KW | A | W | ℃ | m/s | m3/h | dB(A) | mm | ||
| RM125-09-D/Y-B-4-S | 2.3-3.0 | 900 | 220-240 /1 /50 |
6.5 | 29.0 | 160 | 50-60 | 8.5 | 7.0 | 930 | 54 | 900 * 235 * 265 |
| RM125-09-D/Y-B-4-L | ||||||||||||
| RM125-10-D/Y-B-4-S | 1000 | 6.5 | 29.0 | 180 | 1070 | 55 | 1000 * 235 * 265 | |||||
| RM125-10-D/Y-B-4-L | ||||||||||||
| RM125-12-D/Y-B-4-S | 1200 | 7.8 | 35.0 | 210 | 1330 | 56 | 1200 * 235 * 265 | |||||
| RM125-12-D/Y-B-4-L | ||||||||||||
| RM125-15-D/Y-B-4-S | 1500 | 9.8 | 44.0 | 250 | 1740 | 59 | 1500 * 235 * 265 | |||||
| RM125-15-D/Y-B-4-L | ||||||||||||
| RM125-09-3D/Y-B-4-S | 900 | 380-400 /3 /50 |
6.5 | 9.6 | 160 | 930 | 54 | 900 * 235 * 265 | ||||
| RM125-09-3D/Y-B-4-L | ||||||||||||
| RM125-10-3D/Y-B-4-S | 1000 | 6.5 | 9.6 | 180 | 1070 | 55 | 1000 * 235 * 265 | |||||
| RM125-10-3D/Y-B-4-L | ||||||||||||
| RM125-12-3D/Y-B-4-S | 1200 | 7.8 | 11.6 | 210 | 1330 | 56 | 1200 * 235 * 265 | |||||
| RM125-12-3D/Y-B-4-L | ||||||||||||
| RM125-15-3D/Y-B-4-S | 1500 | 9.8 | 14.6 | 250 | 1740 | 59 | 1500 * 235 * 265 | |||||
| RM125-15-3D/Y-B-4-L | ||||||||||||
