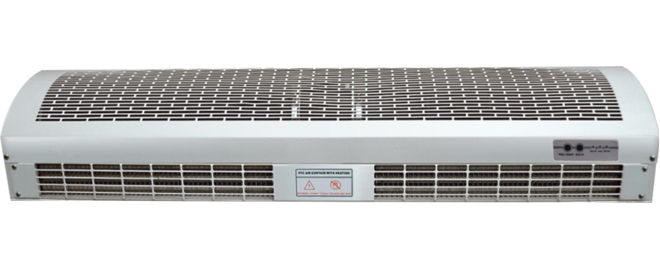

PTC high power double heating air curtain
Detail:
PTC HEATING AIR CURTAIN - HIGHT POWER DOUBLE HEATING
NORMAL & HEATING AIR
Durable powder coated metal casing
Hi efficiency, Low noise, Dia.120mm blower
Microprocessor button control & Remote handset
Finger guard air outlet
High power double heating setting
Safety Ceramic Heater with Auto & Manual switches
Workable at -18 environmental temperature
Auto 3 min. shut off delay protection (heating)
Applicable installation height: 3.0m
Selectable unit width: 0.9,1.0,1.2,1.5,1.8,2.0m
Specification:
Model
Installation
HeightUnit
WidthPower
SupplyCeramic heater
Motor
Power
(H)Outlet
temp.Outlet
air speedAir flow
(H)Noise
(H)Unit Dimension
(W * H * D)
Power
Phase Cur.
L
H
L
H
(Mono speed/Dual heaters)
m
m
V/Ph/Hz
KW
A
W
℃
m/s
m3/h
dB(A)
mm
RM12509-3D/Y-B-1-S
2.3~3.0
900
380-400
/3
/505
10
7.6
15.2
110
50~70
6.5~7
830
50
900 * 221 * 183
RM12509-3D/Y-B-1-L
RM12510-3D/Y-B-1-S
1000
5
10
7.6
15.2
112
980
51
1000 * 221 * 183
RM12500-3D/Y-B-1-L
RM12512-3D/Y-B-1-S
1200
7
14
10.1
17.2
120
1170
53
1200 * 221 * 183
RM12512-3D/Y-B-1-L
RM12515-3D/Y-B-1-S
1500
9
18
13.5
27.2
150
1530
55
1500 * 221 * 183
RM12515-3D/Y-B-1-L
RM12518-3D/Y-B-1-S
1800
10
20
15.1
30.3
171
1820
56
1800 * 221 * 183
RM12518-3D/Y-B-1-L
RM12520-3D/Y-B-1-S
2000
10
20
15.1
30.3
200
2000
57
2000 * 221 * 183
RM12520-3D/Y-B-1-L
