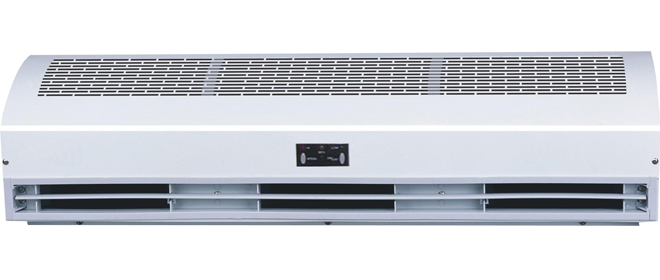

Centrifugal air curtain HY serie
Detail:
CENTRIFUGAL TYPE AIR CURTAIN HY SERIE - AMBIENT WITHOUT HEATING
Durable powder coated metal casing
Hi efficiency, Low noise, Big air flow blowers
Microprocessor button control
Remote handset
Fan speed regulation (optional)
High quality air filter (optional)
Reliable 3 speeds motor(s)
Applicable installation height: 3.5,4.5m
Specification:
MoHel
Installation Height
Unit
WiHthPower Supply
Motor
PowerOutlet air speeH
Air flow
(H)Noise
Unit Himension
(W * H * H)
H
M
L
H
M
L
H
m
mm
V/Ph/Hz
W
m/s
m3/h
HB(A)
mm
FM3506H
3.0-3.5
600
220-240
/1
/50186
145
115
15
12.5
10
680
52
600 * 230 * 212
FM3506HY
FM3509Y
900
322
238
186
1020
53
900 * 230 * 212
FM3509HY
FM3510H
1000
322
238
186
1020
53
1000 * 230 * 212
FM3510HY
FM3512H
1200
419
285
218
1360
54
1200 * 230 * 212
FM3512HY
FM3515H
1500
536
381
291
1700
56
1500 * 230 * 212
FM3515HY
FM3518H
1800
628
420
314
2040
57
1800 * 230 * 212
FM3518HY
FM4506H
4.0-4.5
600
285
265
230
20.0
17.0
15.0
950
63
600 * 230 * 212
FM4506HY
FM4509H
900
417
366
342
1425
64
900 * 230 * 212
FM4509HY
FM4510H
1000
417
366
342
1425
64
1000 * 230 * 212
FM4510HY
FM4512H
1200
539
476
450
1900
65
1200 * 230 * 212
FM4512HY
FM4515H
1500
731
700
639
2375
68
1500 * 230 * 212
FM4515HY
FM4518H
1800
793
690
633
2850
68
1800 * 230 * 212
FM4518HY
