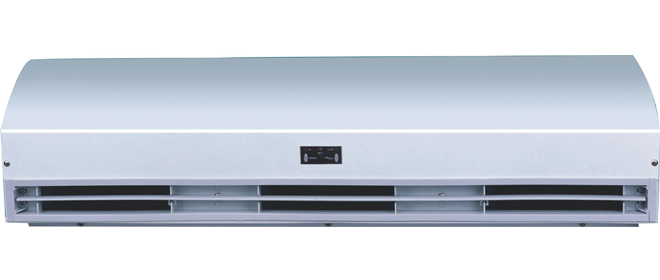

Centrifugal air curtain DY serie
Centrifugal air curtain DY serie
Detail:
CENTRIFUGAL TYPE AIR CURTAIN DY SERIE - AMBIENT WITHOUT HEATING
Durable powder coated metal casing
Hi efficiency, Low noise, Big air flow blowers
Microprocessor button control
Remote handset
Fan speed regulation (optional)
High quality air filter (optional)
Reliable 3 speeds motor(s)
Applicable installation height: 3.5,4.5m
Specification:
| Model | Installation Height | Unit Width |
Power Supply | Motor Power |
Outlet air speed | Air flow (H) |
Noise | Unit Dimension (W * H * D) | ||||
| H | M | L | H | M | L | H | ||||||
| m | mm | V/Ph/Hz | W | m/s | m3/h | dB(A) | mm | |||||
| FM3506D | 3.0-3.5 | 600 | 220-240 /1 /50 |
186 | 145 | 115 | 15 | 12.5 | 10 | 680 | 52 | 600 * 230 * 212 |
| FM3506DY | ||||||||||||
| FM3509Y | 900 | 322 | 238 | 186 | 1020 | 53 | 900 * 230 * 212 | |||||
| FM3509DY | ||||||||||||
| FM3510D | 1000 | 322 | 238 | 186 | 1020 | 53 | 1000 * 230 * 212 | |||||
| FM3510DY | ||||||||||||
| FM3512D | 1200 | 419 | 285 | 218 | 1360 | 54 | 1200 * 230 * 212 | |||||
| FM3512DY | ||||||||||||
| FM3515D | 1500 | 536 | 381 | 291 | 1700 | 56 | 1500 * 230 * 212 | |||||
| FM3515DY | ||||||||||||
| FM3518D | 1800 | 628 | 420 | 314 | 2040 | 57 | 1800 * 230 * 212 | |||||
| FM3518DY | ||||||||||||
| FM4506D | 4.0-4.5 | 600 | 285 | 265 | 230 | 20.0 | 17.0 | 15.0 | 950 | 63 | 600 * 230 * 212 | |
| FM4506DY | ||||||||||||
| FM4509D | 900 | 417 | 366 | 342 | 1425 | 64 | 900 * 230 * 212 | |||||
| FM4509DY | ||||||||||||
| FM4510D | 1000 | 417 | 366 | 342 | 1425 | 64 | 1000 * 230 * 212 | |||||
| FM4510DY | ||||||||||||
| FM4512D | 1200 | 539 | 476 | 450 | 1900 | 65 | 1200 * 230 * 212 | |||||
| FM4512DY | ||||||||||||
| FM4515D | 1500 | 731 | 700 | 639 | 2375 | 68 | 1500 * 230 * 212 | |||||
| FM4515DY | ||||||||||||
| FM4518D | 1800 | 793 | 690 | 633 | 2850 | 68 | 1800 * 230 * 212 | |||||
| FM4518DY | ||||||||||||
