Centrifugal air curtain LY serie
Centrifugal air curtain LY serie
Detail:

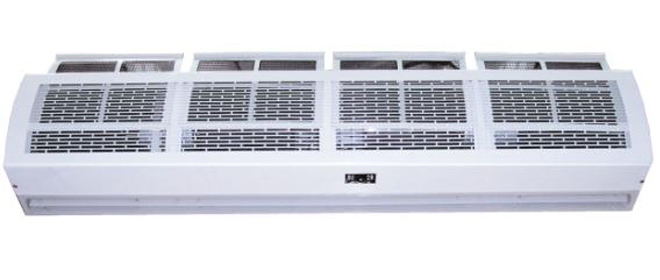

CENTRIFUGAL TYPE AIR CURTAIN LY SERIE - AMBIENT WITHOUT HEATING
(WITH FILTER)
Durable powder coated metal casing
Hi efficiency, Low noise, Big air flow blowers
Microprocessor button control
Remote handset
Fan speed regulation (optional)
High quality air filter
Reliable 3 speeds motor(s)
Applicable installation height: 3.5,4.5m
Specification:
| MoHel | Installation Height | Unit WiHth |
Power Supply | Motor Power |
Outlet air speeH | Air flow (H) |
Noise | Unit Himension (W * H * H) | ||||
| H | M | L | H | M | L | H | ||||||
| m | mm | V/Ph/Hz | W | m/s | m3/h | HB(A) | mm | |||||
| FM3506L | 3.0-3.5 | 600 | 220-240 /1 /50 |
186 | 145 | 115 | 15 | 12.5 | 10 | 680 | 52 | 600 * 230 * 212 |
| FM3506LY | ||||||||||||
| FM3509Y | 900 | 322 | 238 | 186 | 1020 | 53 | 900 * 230 * 212 | |||||
| FM3509LY | ||||||||||||
| FM3510L | 1000 | 322 | 238 | 186 | 1020 | 53 | 1000 * 230 * 212 | |||||
| FM3510LY | ||||||||||||
| FM3512L | 1200 | 419 | 285 | 218 | 1360 | 54 | 1200 * 230 * 212 | |||||
| FM3512LY | ||||||||||||
| FM3515L | 1500 | 536 | 381 | 291 | 1700 | 56 | 1500 * 230 * 212 | |||||
| FM3515LY | ||||||||||||
| FM3518L | 1800 | 628 | 420 | 314 | 2040 | 57 | 1800 * 230 * 212 | |||||
| FM3518LY | ||||||||||||
| FM4506L | 4.0-4.5 | 600 | 285 | 265 | 230 | 20.0 | 17.0 | 15.0 | 950 | 63 | 600 * 230 * 212 | |
| FM4506LY | ||||||||||||
| FM4509L | 900 | 417 | 366 | 342 | 1425 | 64 | 900 * 230 * 212 | |||||
| FM4509LY | ||||||||||||
| FM4510L | 1000 | 417 | 366 | 342 | 1425 | 64 | 1000 * 230 * 212 | |||||
| FM4510LY | ||||||||||||
| FM4512L | 1200 | 539 | 476 | 450 | 1900 | 65 | 1200 * 230 * 212 | |||||
| FM4512LY | ||||||||||||
| FM4515L | 1500 | 731 | 700 | 639 | 2375 | 68 | 1500 * 230 * 212 | |||||
| FM4515LY | ||||||||||||
| FM4518L | 1800 | 793 | 690 | 633 | 2850 | 68 | 1800 * 230 * 212 | |||||
| FM4518LY | ||||||||||||
