Cross flow air curtain 2 serie
Cross flow air curtain 2 serie
Detail:

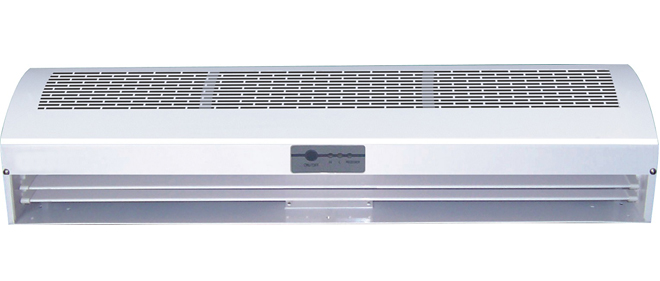

CROSS FLOW TYPE AIR CURTAIN 2 SERIE - AMBIENT WITHOUT HEATING
Durable powder coated metal casing
Hi efficiency, Low noise, Dia.120mm blower
Microprocessor button control
Remote handset
Finger guard air outlet (optional)
Reliable 2 speeds motor
Applicable installation height: 3.0m
Selectable unit width: 0.9,1.0,1.2,1.5,1.8,2.0m
Specification:
| Model | Installation Height | Unit Width |
Power Supply |
Motor Power |
Outlet air speed (L-H) |
Air flow (H) |
Noise (H) |
Unit Dimension (W * H * D) | |
| H | L | ||||||||
| m | mm | V/Ph/Hz | W | m/s | m3/h | dB(A) | mm | ||
| FM3009-2-S FM3009-2-L |
2.3-3.0 | 900 | 220-240 /1 /50 |
166 | 115 | 9-11 | 1220 | 57 | 900 * 221 * 183 |
| FM3010-2-S FM3010-2-L |
1000 | 190 | 133 | 1450 | 58 | 1000 * 221 * 183 | |||
| FM3012-2-S FM3012-2-L |
1200 | 209 | 155 | 1710 | 59 | 1200 * 221 * 183 | |||
| FM3015-2-S FM3015-2-L |
1500 | 266 | 202 | 2230 | 60 | 1500 * 221 * 183 | |||
| FM3018-2-S FM3018-2-L |
1800 | 325 | 235 | 2700 | 62 | 1800 * 221 * 183 | |||
| FM3020-2-S FM3020-2-L |
2000 | 380 | 270 | 2900 | 64 | 2000 * 221 * 183 | |||
| FM3009-Y-2-S FM3009-Y-2-L |
900 | 166 | 115 | 1220 | 57 | 900 * 221 * 183 | |||
| FM3010-Y-2-S FM3010-Y-2-L |
1000 | 190 | 133 | 1450 | 58 | 1000 * 221 * 183 | |||
| FM3012-Y-2-S FM3012-Y-2-L |
1200 | 209 | 155 | 1710 | 59 | 1200 * 221 * 183 | |||
| FM3015-Y-2-S FM3015-Y-2-L |
1500 | 266 | 202 | 2230 | 60 | 1500 * 221 * 183 | |||
| FM3018-Y-2-S FM3018-Y-2-L |
1800 | 325 | 235 | 2700 | 62 | 1800 * 221 * 183 | |||
| FM3020-Y-2-S FM3020-Y-2-L |
2000 | 380 | 270 | 2900 | 64 | 2000 * 221 * 183 | |||
