Cross flow air curtain 1 serie
Cross flow air curtain 1 serie
Detail:

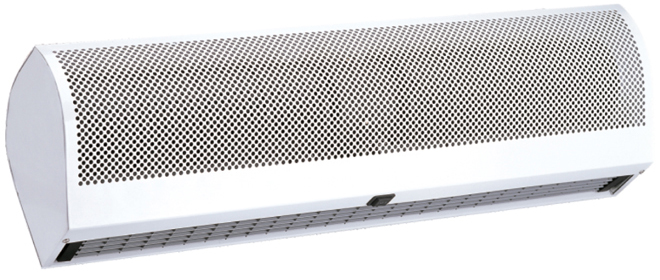

CROSS FLOW TYPE AIR CURTAIN 1 SERIE - AMBIENT WITHOUT HEATING
Durable powder coated metal casing
Hi efficiency, Low noise, Dia.120mm blower
Microprocessor button control
Remote handset
Finger guard air outlet (optional)
Reliable 2 speeds motor
Applicable installation height: 3.0m
Selectable unit width: 0.9,1.0,1.2,1.5,1.8m
Specification:
| Model | Installation Height | Unit Width |
Power Supply |
Motor Power |
Outlet air speed (L-H) |
Air flow (H) |
Noise (H) |
Unit Dimension (W * H * D) | |
| H | L | ||||||||
| m | mm | V/Ph/Hz | W | m/s | m3/h | dB(A) | mm | ||
| FM3009-1-S FM3009-1-L |
2.3-3.0 | 900 | 220-240 /1 /50 |
166 | 115 | 9-11 | 1220 | 57 | 900 * 215 * 200 |
| FM3010-1-S FM3010-1-L |
1000 | 190 | 133 | 1450 | 58 | 1000 * 215 * 200 | |||
| FM3012-1-S FM3012-1-L |
1200 | 209 | 155 | 1710 | 59 | 1200 * 215 * 200 | |||
| FM3015-1-S FM3015-1-L |
1500 | 266 | 202 | 2230 | 60 | 1500 * 215 * 200 | |||
| FM3009-Y-1-S FM3009-Y-1-L |
900 | 166 | 115 | 1220 | 57 | 900 * 215 * 200 | |||
| FM3010-Y-1-S FM3010-Y-1-L |
1000 | 190 | 133 | 1450 | 58 | 1000 * 215 * 200 | |||
| FM3012-Y-1-S FM3012-Y-1-L |
1200 | 209 | 155 | 1710 | 59 | 1200 * 215 * 200 | |||
| FM3015-Y-1-S FM3015-Y-1-L |
1500 | 266 | 202 | 2230 | 60 | 1500 * 215 * 200 | |||
