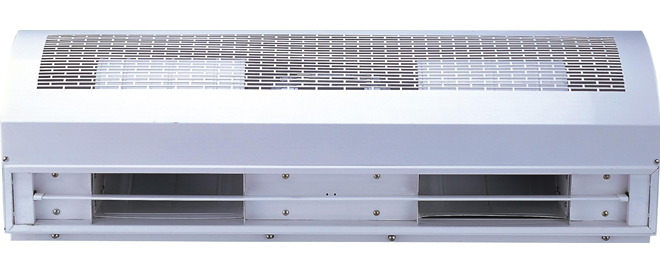

    INDUSTRIAL TYPE AIR CURTAIN - AMBIENT WITHOUT HEATING



    Durable powder coated metal casing
    Hi efficiency, Big air flow blowers
    Super air blow distance
    One speed motor
    For industrial usage
    Applicable installation height: 6m,8m
    Selectable unit width: 1.0,1.2,1.5m



    Specification:



    Model Installation Height Unit
    Width    		 Power
    Supply    		 Motor Outlet air speed Air flow Noise Unit Dimension
    (W * H * D)
    Power Current
    Amp/Phase
    　 m m V/Ph/Hz KW A m/s m3/h dB(A) mm
    GFM6010 5.0-6.0 1000 380-400
    /3
    /50    		 1.10 2.55 28 3709 64 1000 * 287 * 297
    GFM6012 1200 1.10 2.55 3709 66 1200 * 287 * 297
    GFM6015 1500 1.85 4.30 5563 68 1500 * 287 * 297
    GFM8010 7.0-8.0 1000 1.50 3.44 30 3974 67 1000 * 287 * 297
    GFM8012 1200 1.50 3.44 3974 70 1200 * 287 * 297
    GFM8015 1500 2.25 5.19 5961 72 1500 * 287 * 297
